Advantage

High precision and high quality

High precision scanning galvanometer, high precision and strong stability

Fresh air protection system

Lejia fresh air system efficient operation, double circulation wind field protection to ensure more stable forming, extend the service life of optical parts

Fully pop-up piston

Equipped with fully pop-up piston platform, convenient and fast replacement of all kinds of metal powder, 100% prevent the occurrence of cross-contamination when replacing the powder

Fully closed vacuum chamber

Low oxygen content in manufacturing environment ensures metal is not oxidized and can be compatible with powder of different specifications

Parameter

• Device name/model


  laser


  Scanning system


  Scanning speed


  Molding cavity size


  The thickness of the layered


  Feeding way


  Molding material


  The operating system


  The control software


  The data format


  Power supply and power consumption


  External dimensions of equipment


  The environment temperature

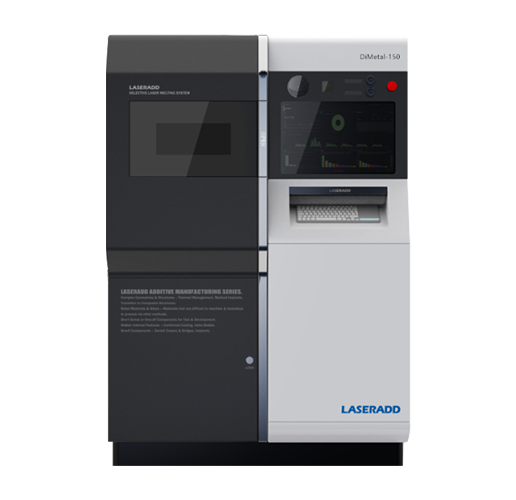

• DiMetal-150


  Infrared ytterbium doped fiber laser, 500W


  High precision scanning galvanometer


  Top 7.8 m/s


  150mm*150mm*150mm


  0.02 mm to 0.2 mm


  One way for powder


  Stainless steel, cobalt-chromium alloy, titanium alloy, die steel, aluminum alloy, tungsten, tantalum and other metal powder


  Windows 7 64 bits


  Independent development of control and path planning software system


  STL file or other convertible format


  220 V 50 Hz 5Kw


  1200mm (L) *800mm (W) *1700 (H)


  Operating temperature 15-30℃

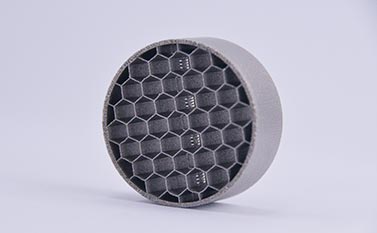

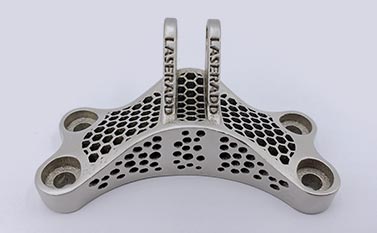

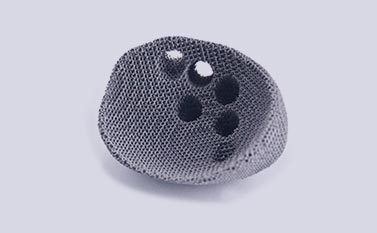

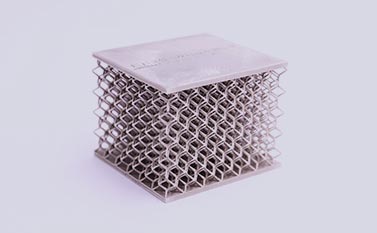

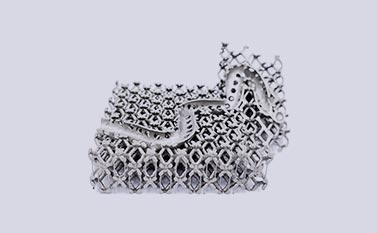

Case

F5

F4

F3

F2

F1

Recommend equipment

DiMetal-650

Scanning speed up to 34m/s
Molding cavity size 625mm*625mm*1100mm
Layer thickness 0.02mm to 0.2mm

Application: aerospace, mold industry, automobile industry and other large size parts are widely used in the industry.

Learn More

DiMetal-50

Scanning speed: maximum 7m/s
Cavity size: 50mm*50mm*50mm
Layer thickness: 0.02mm-0.1mm

Application: jewelry, dentistry, scientific research and education industries

Learn More

DiMetal-50E

Molding size φ70x50
Dimensions 720mm*810mm*1500mm

Metal 3D printer for vocational education and training

Learn More

DiMetal-100D

Maximum scanning speed of 7m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.1mm

Application: Orthopedics, dentistry, jewelry and scientific research and education

Learn More

DiMetal-100E

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, scientific research, education

Learn More

DiMetal-100H

Maximum scanning speed of 7.8m/s
Molding cavity size 100mm*100mm*100mm
Layer thickness 0.02mm to 0.2mm

Application: Dentistry, orthopedics, jewelry, scientific research and education

Learn More
